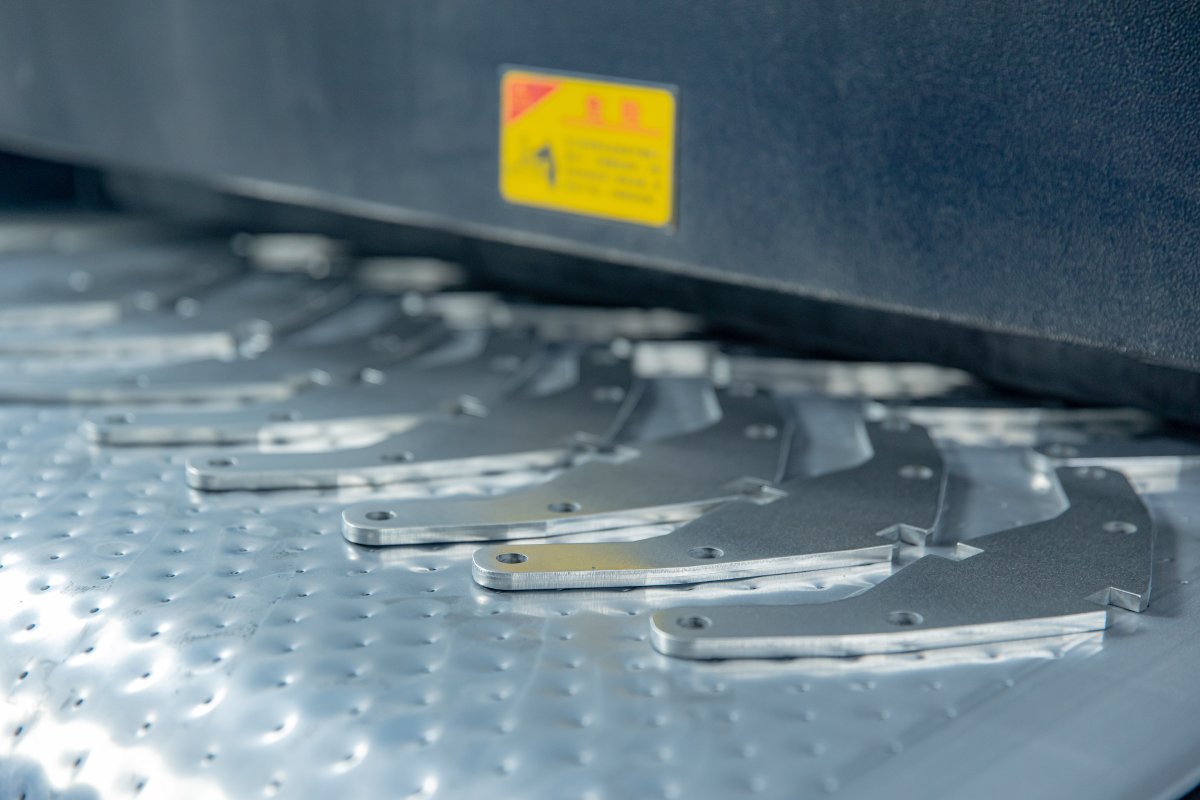

Sheet metal fabrication is the process of turning flat sheets of steel, aluminum, titanium or other metals into metal structures or products. This transformation is achieved through a series of techniques such as cutting, punching, folding, bending, stamping, welding, and finishing. The process generally consists of three key stages: cutting the metal, forming or bending it to the desired shape, and then assembling the pieces.
The primary objective of sheet metal fabrication is to produce metal parts in desired shapes and sizes. Depending on the project's requirements, the metal fabricator employs these techniques, ensuring that flat metal sheets—whether steel or aluminum—can be stretched, cut, bent, or assembled into a variety of complex shapes. This allows for strong structural parts to be made relatively light-weight and inexpensively, often without any required tooling, which reduces capital costs and project timelines.
Key Types of Sheet Metal Fabrication Processes
Various sheet metal fabrication techniques enable the conversion of flat metal sheets into intricate and functional components, each tailored to specific needs and applications. These techniques can be broadly categorized into cutting, bending, and joining processes.
Cutting Techniques
The cutting process involves reducing sheet metals into more manageable pieces or tailored shapes.
- Sheet metal laser cutting: offers precision and can quickly cut through sheet metal.
- Water jet cutting: provides a cold-cutting method, ideal for heat-sensitive materials.
- Plasma cutting: is a versatile technique suitable for various metals, enabling one to form sheet metal without excessive heat.
- The punching process: creates precise holes, slots, or patterns within the metal, often in high-volume scenarios. This technique is especially useful when specific patterns or ventilation spaces are required in a piece, or when components need to fit together with bolts or other fasteners.
Bending Processes
Sheet metal forming is a significant aspect, and to sculpt sheet metal into its intended shape, bending comes into play. This process is all about the strategic exertion of force, compelling the metal to bend at specific angles. Various bending techniques are employed to achieve the necessary bends and folds:
- Air bending: In air bending, the metal is bent using a punch and die, with a small gap between them. The material is pressed into the die, and it takes on the desired shape without the punch making direct contact with the metal. This method allows for flexibility and ease of adjustment, making it suitable for a wide range of bending angles.
- Bottom bending: Bottom bending, also known as "bottoming," involves bending the sheet metal by forcing it against the bottom of a die cavity with the punch. This method is commonly used when precise and consistent angles are required, as it ensures that the metal conforms closely to the shape of the die.
- Coining: Coining is a sheet metal bending technique that produces extremely precise and sharp bends. It involves applying a significant amount of force to the metal, which results in a tight and well-defined bend. Coining is often used for creating intricate shapes and achieving a high level of precision in the final product.
The type of metal selected plays a significant role in the fabrication process, directly influencing the performance characteristics of the final product.

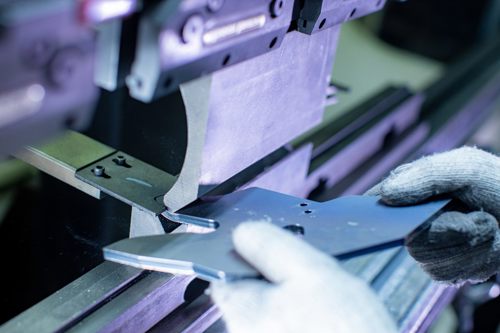

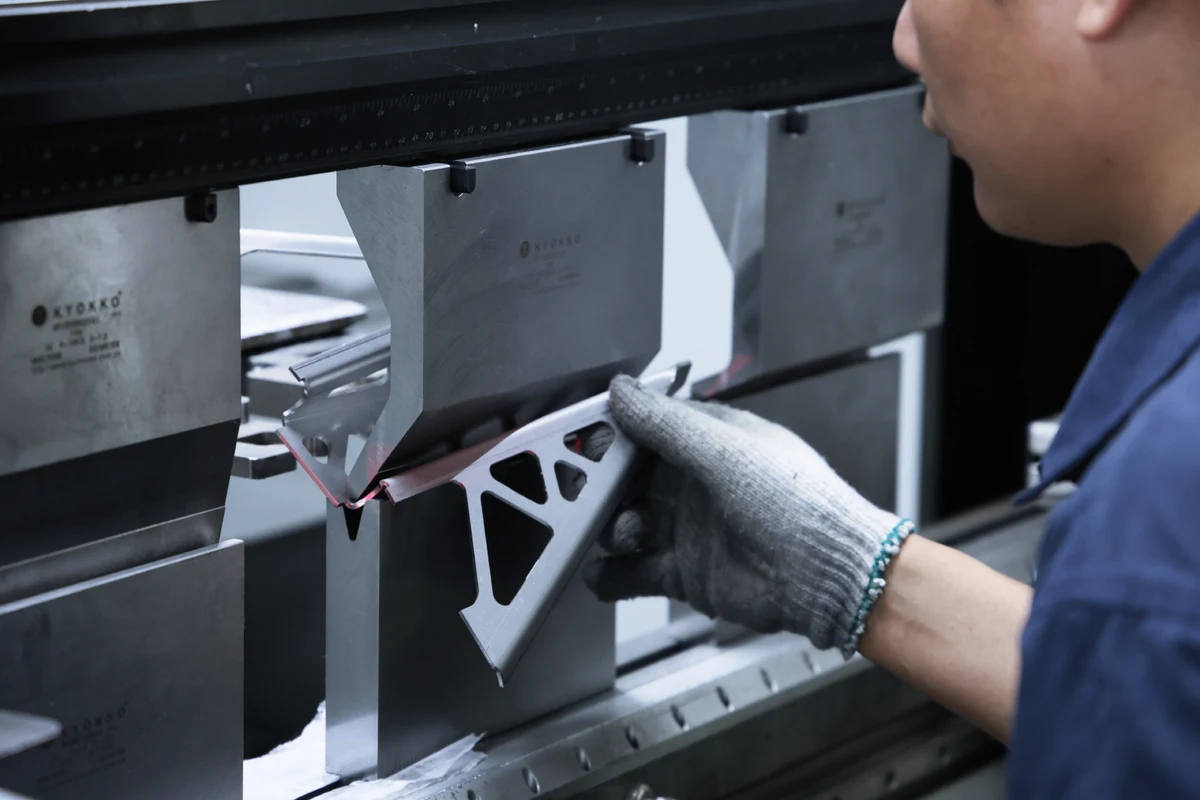

Fig. 1: Sheet Metal Bending Process at Komacut
Joining Methods
After the cutting and shaping stages, the joining process involves bringing together individual sheet metal pieces into a unified structure.

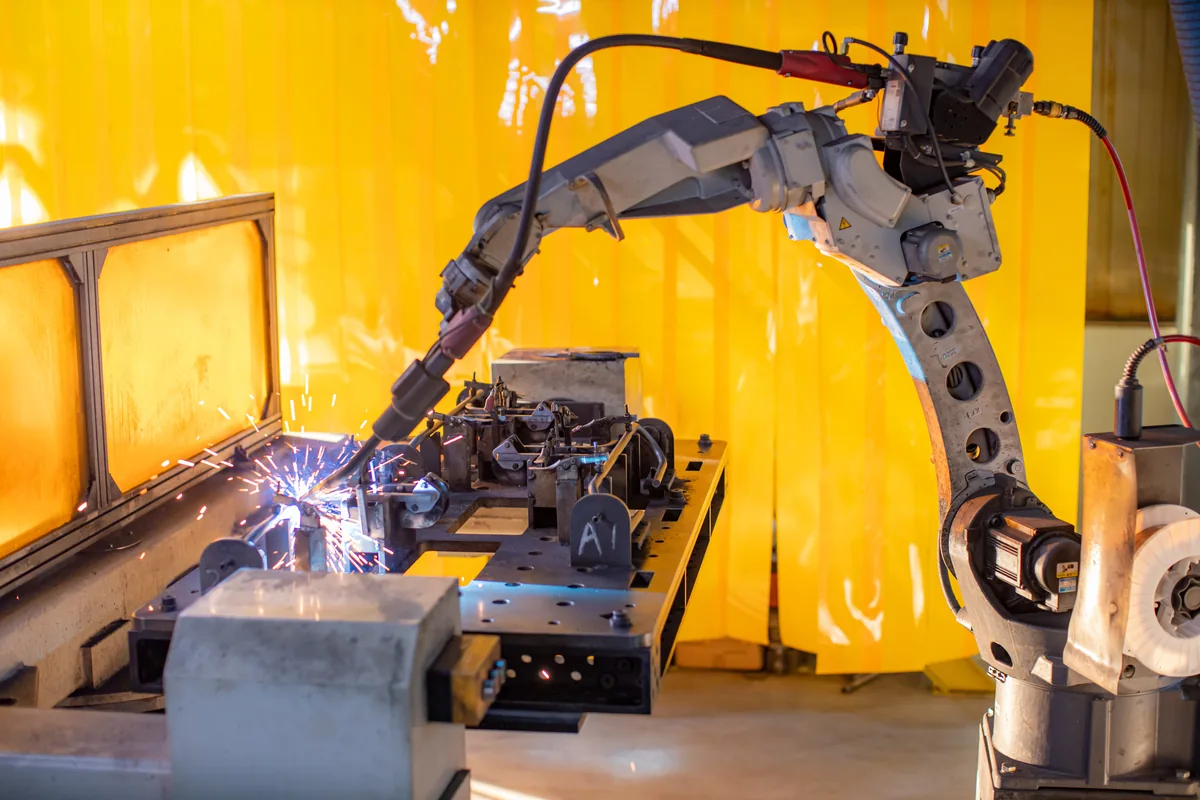

- Welding: This is a common fabrication technique, fusing metals through heat, and thus joining the two sheet metal components. When properly executed, it can bring greatly superior strength than riveting or adhesives.
- Riveting: This offers a mechanical fastening approach which is fast, reliable, low cost, and has low technical complexity or skill required. It provides a sturdy connection between sheet metal pieces.
- Adhesives: Industrial glues or adhesive tapes serve as an option often chosen for their aesthetic finish (hidden bonding lines, no visible welds or fasteners) and can have exceptional bonding strength. They are generally seen as less resistant to mechanical stresses and lack the long-term reliability of fasteners or welding.
| Category | Process/Technique | Description |
|---|---|---|
| Cutting | Sheet metal laser cutting | Offers precision and can quickly cut through sheet metal. |
| Water jet cutting | Provides a cold-cutting method, ideal for heat-sensitive materials. | |
| Plasma cutting | Suitable for various metals, enabling one to form sheet metal without excessive heat. | |
| Punching | Creates precise holes, slots, or patterns within the metal. Useful for patterns or ventilation spaces. | |
| Forming | Air bending | Bends sheet metal at specific angles. |
| Bottoming | Another technique to achieve necessary bends in sheet metal. | |
| Coining | Integral to achieve specific bends and folds in sheet metal. | |
| Joining | Welding | Fuses metals through heat, effectively joining sheet metal components. |
| Riveting | Offers a mechanical fastening approach. | |
| Adhesives | Often chosen for their aesthetic finish and bonding strength. |
Table 1: Various sheet metal fabrication processes and their descriptions
Types of Metal Materials Used in Sheet Metal Fabrication
Different types of metals are used in sheet metal fabrication, each offering its own unique advantages. The choice of material significantly influences the performance and durability of the final product.
Carbon Steel
Known for its strength and durability, steel is often used in sheet metal fabrication for heavy-duty applications. Carbon steel is less expensive than stainless or aluminum by weight, though it will require additional finishing to avoid rusting and corrosion. Most commonly used are mild carbon steels, though there are a range of alloys that can be used with varying strengths and costs.
- Hot Rolled Steel: This type of steel is processed at high temperatures, making it free from internal stresses that can arise from quenching or work-hardening. It has a rough surface texture and is typically used in applications where the finish isn't a primary concern. Its primary advantage is its cost-effectiveness and ease of fabrication.
- Cold Rolled Steel: Processed further than hot rolled steel, cold rolled steel is made by taking hot rolled steel and further processing it to create a smoother surface finish. It offers tighter tolerances and a more refined look, making it suitable for more visible applications. It is also stronger than hot rolled steel due to the additional processing.
Galvanized Steel
This type of steel is coated with a protective layer of zinc to protect it from corrosion. The zinc acts as a barrier preventing oxygen and water from reaching the steel, so it is more durable and long-lasting than carbon steels, even without additional processing. It's commonly used in applications where the metal component may have limited exposure to moisture without the need for further surface finishing, but it lacks the level of corrosion resistance offered by stainless steel or more advanced surface treatments.
Stainless Steel
This material is highly resistant to corrosion, making it suitable for outdoor applications and in environments where the metal component may be exposed to moisture.
Aluminum
Lightweight yet strong, aluminum is commonly used in applications where weight is a critical factor, such as in aviation and automotive industries.
The ability to choose the most appropriate material for a particular application can significantly enhance the functionality and lifespan of the product. The role of materials in sheet metal fabrication is indeed a fascinating one, providing a variety of options for diverse metal fabrication work.

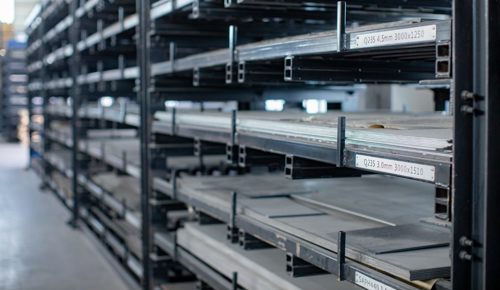

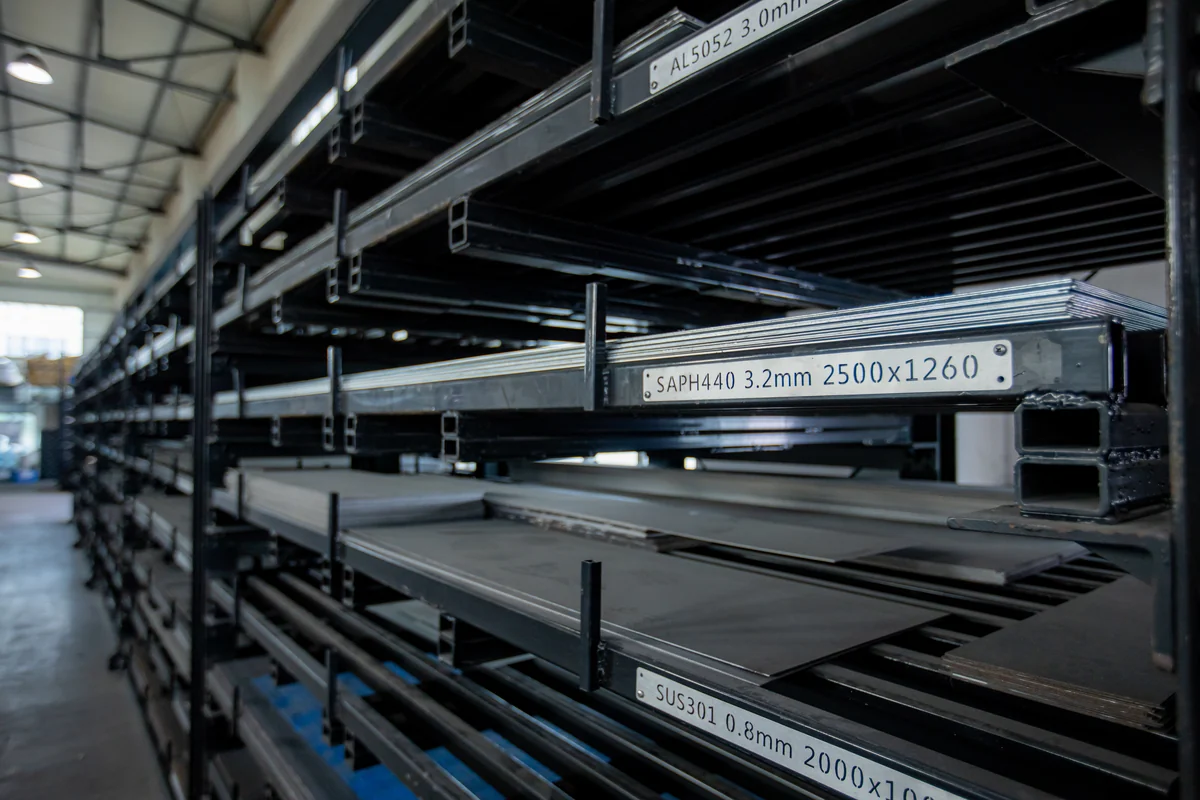

Fig. 2: Sheet Metal Materials at Komacut
Tools and Equipment Used in Sheet Metal Fabrication
Diverse tools and equipment are integral to the process of transforming flat metal sheets into various products and structures. In the realm of sheet metal fabrication services, sheet metal fabricators utilize specialized machinery to manipulate sheet thickness and perform operations like cutting, metal forming, and sheet metal bending. The design specifics of a sheet metal project determine the selection of these tools. For clarity, we've categorized them in the table below:
| Category | Tool/Equipment | Description/Use |
|---|---|---|
| Cutting Tools | Shearing Machine | Produces straight-line cuts on flat metal stock, eliminating sheet metal waste and ensuring a clean edge. |
| Water jet | Uses a mixture of water and abrasives at high pressures to make precise cuts without heat, ensuring no metal warping. | |
| Laser Cutter | Uses concentrated beams of light to melt, burn, or vaporize material, providing precise and clean cuts. | |
| Plasma Cutter | Utilizes ionized gas to melt and cut through electrically conductive materials, resulting in fast, efficient cuts. | |
| Saws | Equipped with toothed blades suitable for detailed cuts on metal sheets. | |
| Drilling Equipment | Bore tools that create defined, circular holes in sheet metal, suitable for various sizes and depths. | |
| Threading Equipment | Used post-drilling, it creates internal spirals or grooves in holes for fastening via screws. | |
| Forming Tools | Press Brake | Used for bending by clamping the metal sheet between a punch and die. |
| Rolling Equipment | To curve and shape metal. | |
| Stamping Equipment | Utilized to create patterns or shapes by pressing or "stamping" the metal sheet using dies. | |
| Deep Drawing Equipment | Used to mold sheet metal into deep, hollow shapes by stretching the material over a punch. | |
| Assembly Tools | Welding Equipment | For fusing metal pieces together. |
| Rivet Guns | To join metal sheets without the need for heat. | |
| Brazing Tools | Used for joining metals via a filler metal. |
Table 1: Tools and Equipment Used in Sheet Metal Fabrication
The design specifics of the sheet metal project determine the selection of tools. Fabricators need to understand the sheet metal design intricacies to choose the right tools for accurate results.

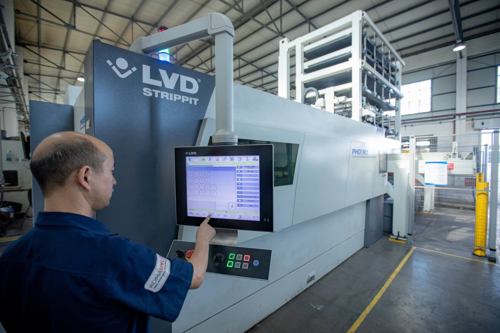

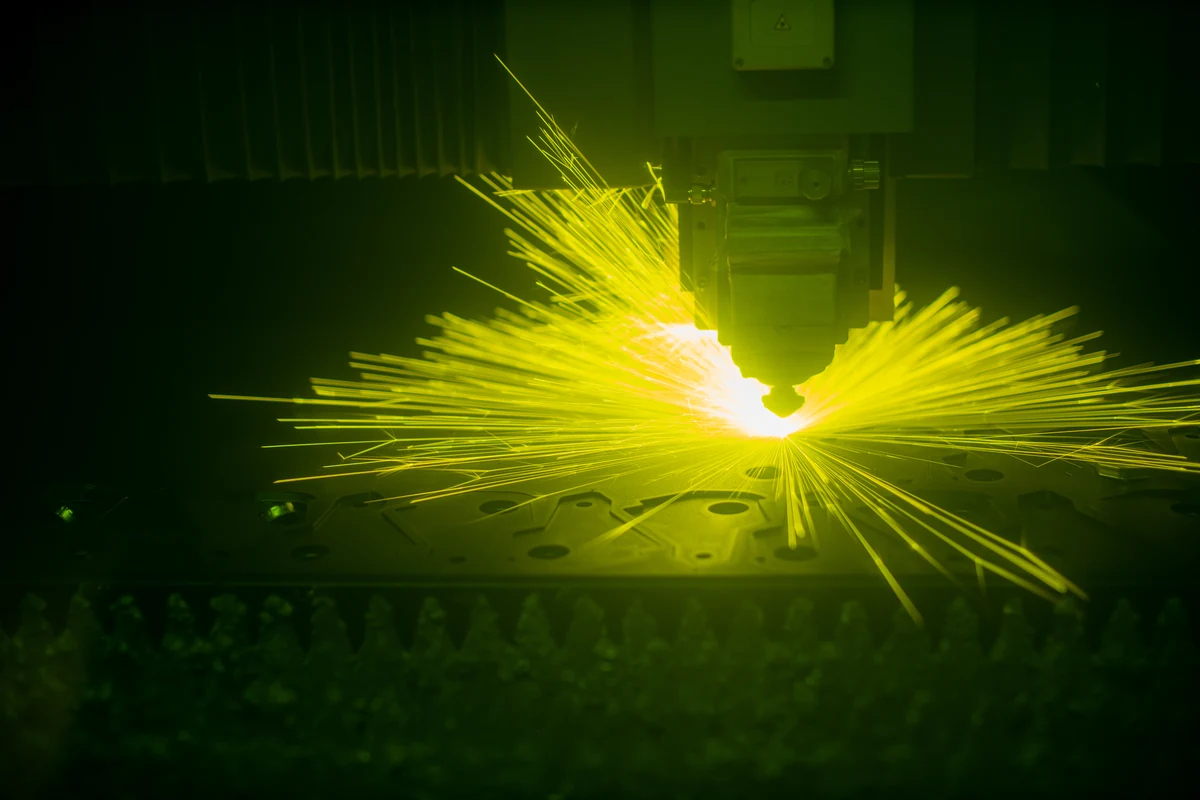

Fig. 3: Laser Cutting at Komacut
Design Aspects in Sheet Metal Fabrication
The transformation of flat metal sheets into functional products and structures hinges on meticulous design. Proper design ensures efficiency, cost-effectiveness, and product longevity. Here are some pivotal design factors to consider:
Material Selection
The right material should be chosen based on the product's intended use, environmental conditions it will be exposed to, and manufacturing capabilities.
Tolerance
Every manufacturing method has its specific tolerances. Ensuring that the design tolerances align with manufacturing capabilities is crucial to avoid production issues and additional costs.
Finish
The desired finish not only affects the product's appearance but also its resistance to environmental factors, such as corrosion. This can also influence material selection and post-processing steps.
Joining Methods
Depending on the design, you might need welds, rivets, or other joining methods. Their placement and type can significantly impact both the product's aesthetics and functionality.
Cost Implications
The complexity of a design can influence manufacturing time and material wastage, both of which have cost implications.
Manufacturability
A design might look good on paper but may be challenging or expensive to manufacture. Always design with manufacturability in mind.
Advantages of Sheet Metal Fabrication
Sheet metal fabrication stands out as a preferred manufacturing method due to the inherent benefits it offers. Adopted across various sectors, the unique attributes combined with precise sheet metal fabrication techniques lead to numerous advantages:
- Versatility: Sheet metal can be molded into a multitude of shapes and sizes, making it suitable for diverse applications.
- Durability: When fabricated correctly, sheet metal products can have a long lifespan and resist wear and tear.
- High Precision: Advanced fabrication techniques ensure products are made to exact specifications.
- Consistency: Especially in large-scale production, sheet metal fabrication can produce consistent, high-quality outputs.
- Suitability for Mass Production: With the right tools and designs, large quantities of products can be manufactured efficiently.

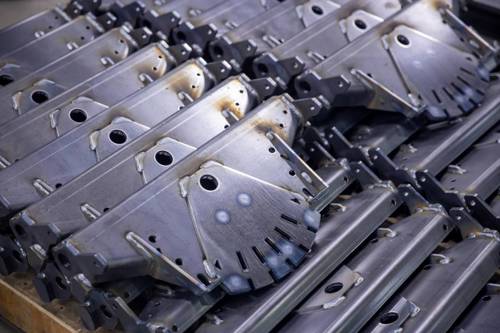

Fig. 4: Sheet Metal Parts Fabrication
Disadvantages of Sheet Metal Fabrication
While the benefits of sheet metal fabrication are clear, it's essential to recognize potential challenges. Understanding these drawbacks ensures informed decisions when considering sheet metal for a project. When compared to other manufacturing techniques, there are certain considerations to be aware of:
- Material Limitations: While sheet metal offers versatility, depending on the application and the material characteristics needed, sheet metal might not be suitable. Certain parts or applications may call for more plastic or elastic materials.
- Thickness Constraints: Depending on the specific method, there can be limitations on how thin the sheet metal can be while retaining structural integrity. There are also only so many standard thicknesses available – customers may have to adjust design to standard gauges when designing components for sheet metal fabrication.
- Lead Times: For highly specialized components, initial setup and design validations might extend lead times compared to simpler, repetitive manufacturing processes.
- Finishing Requirements: Some sheet metal products may require additional post-processing or finishes to enhance their aesthetic appeal or resistance to external factors.
- Geometric Limitations: metal can only be folded so many times or drawn so deep, or cut so thin before deformation, cracking or other damage occurs. Depending on the shape, additive processes like diecasting, forging or injection might be needed.
Sheet Metal Fabrication vs Other Metal Manufacturing Techniques
As industries continually seek the optimal balance between durability, precision, and cost, the inherent properties of sheet metal material, coupled with advanced fabrication techniques, make it an attractive choice. Here's how sheet metal manufacturing stacks up against other notable manufacturing approaches:
Die Casting
Die casting is an additive process very similar to plastic injection – molten aluminum is injected via extremely high pressure into a mold where it cools into a set shape. Diecasting offers several advantages: it can make certain shapes sheet metal fabrication cannot, it can have low part costs for very high volumes, and can achieve good precision. However, diecasting requires expensive tooling which is difficult to modify due to the high temperatures and pressures it operates in, so it is often used for high volume products with a mature design. Additional CNC machining and surface finishing is often needed, as the parts will have flash and a poor appearance after molding.
3D Metal Printing (Additive Manufacturing)
Renowned for rapid prototyping and intricate designs, 3D printing has developed to the point where there are multiple technologies available to produce metal components in the complex geometries that additive manufacturing offers. However, when the goal is mass production with reasonable pricing and lead times, industries often turn to sheet metal fabrication for its efficiency and robustness. Metal sintering and other 3D processes have higher process and raw material costs, longer lead times, and are generally much more narrowly focused on parts with the types of complex geometries not easily produced by sheet metal or other processes.
CNC Machining
A stalwart in precision manufacturing, CNC machining delivers when detailed components with complex geometries are needed. CNC machining, due to the subtractive nature of the process (cutting material away by repeated passes with finer and finer cutting heads) is by definition more expensive than sheet metal, and it not suited for larger or more cost-senstive parts.
Foundry Casting
This age-old technique involves melting metal and casting it into molds which can be made from a variety of materials (sand, metal, etc.) and done in a variety of methods (vacuum casting, forge casting, etc.). While effective for certain shapes, the process can sometimes be more resource-intensive than manipulating a piece of sheet metal into the desired form, as the metal needs to be melted down and a specific mold produced for that part, compared to the more flexible sheet metal manufacturing method.
Surface Finishing and Post Processing for Sheet Metal Parts
Post-processing and surface finishing techniques in sheet metal fabrication significantly enhance the final properties and aesthetics of sheet metal products. After the initial formation of sheet metal parts, several supplementary operations ensure they meet desired specifications and appearance.
| Surface Finishes | Description |
|---|---|
| Sand Blasting | Blasting the metal with high-speed sand or other abrasives to create a matte finish. |
| Deburring with Milled and Brushed Finishes | Buffing the metal surface with a cloth wheel to create a glossy appearance. |
| Powder Coating | Powdered paint is sprayed onto the metal component, then baked to create a hard, wear-resistant layer. |
| Anodizing | An electrochemical process that enhances surface hardness and durability. Also offers good rust resistance. |
| Chemical Films | Provides strong conductivity and corrosion resistance. Often used as a base layer for paint. |
| Heat Treatment | Involves heating and controlled cooling of the metal to relieve internal stresses and improve hardness and toughness. |
| Painting | Enhances the product's appearance and provides protection against corrosion. |
| Plating | Involves applying a thin layer of another metal to the sheet metal surface through electrochemical processes. Improves conductivity, corrosion resistance, and aesthetic appeal. |
Table 2: Processing and Surface Finishing Techniques
These post-processing and finishing steps not only refine the product but also ensure its mechanical properties are optimized. Such considerations are essential as we transition to understanding the cost implications of sheet metal fabrication.

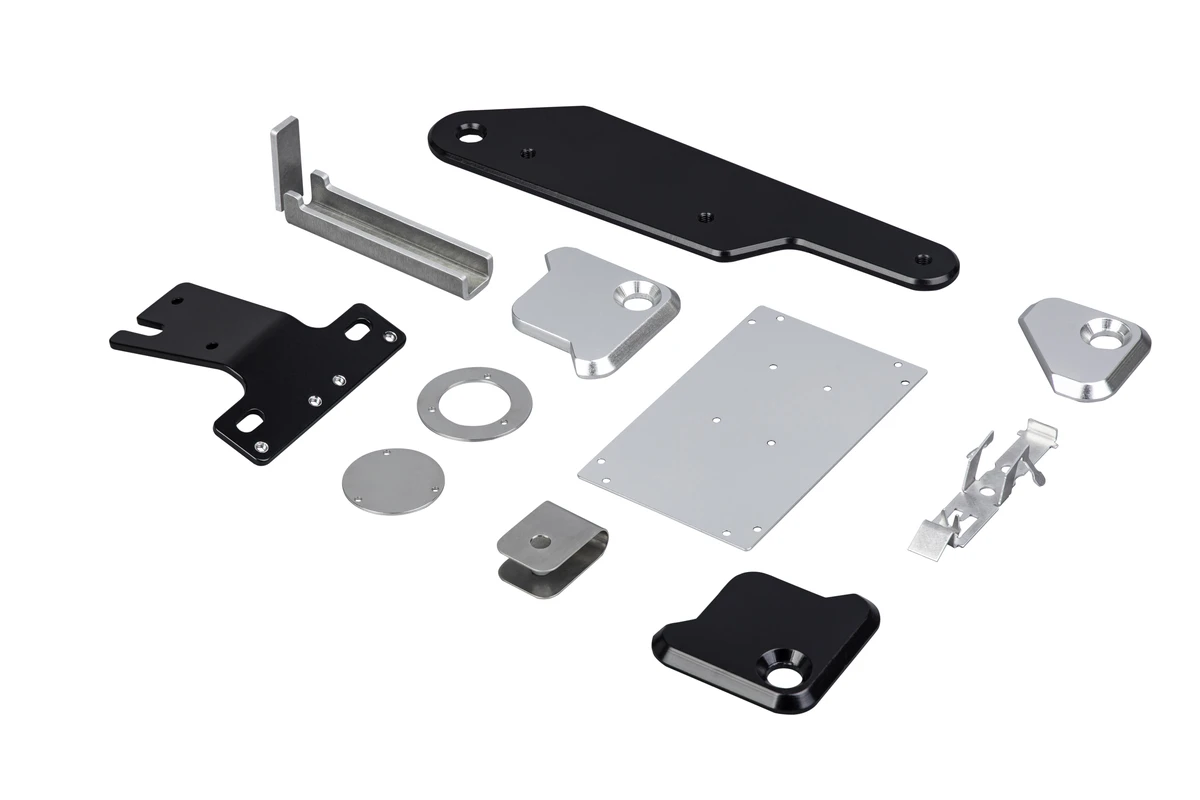

Fig. 5: Sheet Metal Parts Surface Finishing
Cost Factors in Sheet Metal Fabrication
Material Type and Thickness
The choice and thickness of sheet metal can considerably sway the overall expenditure. Specifically, thicker sheets demand more energy and processing time, especially during the cutting, forming and bending processes. This can lead to heightened costs. More material also simply means higher raw material costs.
Design Complexity
The intricacy level of the design directly impacts the overall expense. Designs that feature intricate, small metal parts or complex sheet metal structures can escalate labor costs due to the added precision and time needed. In general, the more features on a sheet metal part (bends, holes, cutouts), the higher the price.
Fabrication Techniques
The specific methods and techniques chosen for fabrication can vary in cost. Certain processes that are labor-intensive or that necessitate specialized equipment can amplify the overall expenditure.
Production Volume
The scale of production has a notable effect on determining the unit cost. Larger batch sizes equal lower costs, as the set up cost for the machine / process is spread over more units in the production batch.
What Are Common Sheet Metal Applications?
Sheet metal fabrication is a versatile and precise manufacturing technique that caters to a multitude of industries. Its ability to be molded into a wide range of shapes and sizes makes it a preferred choice for many applications. It plays an essential role in the production of various items we use daily. With a projected industry growth in sheet metal fabrication services of USD 3.52 billion from 2021 to 2026, the importance of sheet metal fabrication is growing in the manufacturing industry.
Here's a breakdown of key industries and how they leverage sheet metal fabrication.
Automotive Industry
Precision-made parts ensure vehicles' structural integrity, performance, and safety. The adaptability of sheet metal allows for design flexibility and innovation in automotive manufacturing, while controlling part weight.
- Body panels
- Engine components
- Exhaust parts
- Chassis
- More
Aerospace Industry
The aerospace sector demands materials that are both lightweight and strong. Sheet metal fabrication meets these requirements, ensuring aircraft components are robust, reliable, and meet rigorous industry standards.
- Airframes
- Engine parts
- Landing gear components
- Cabin structures
Construction Industry
Durability and resilience are paramount in construction. Sheet metal components can withstand external environmental factors, ensuring longevity and safety in buildings and infrastructure.
- HVAC systems
- Roofing materials
- Cladding
- Structural reinforcements
